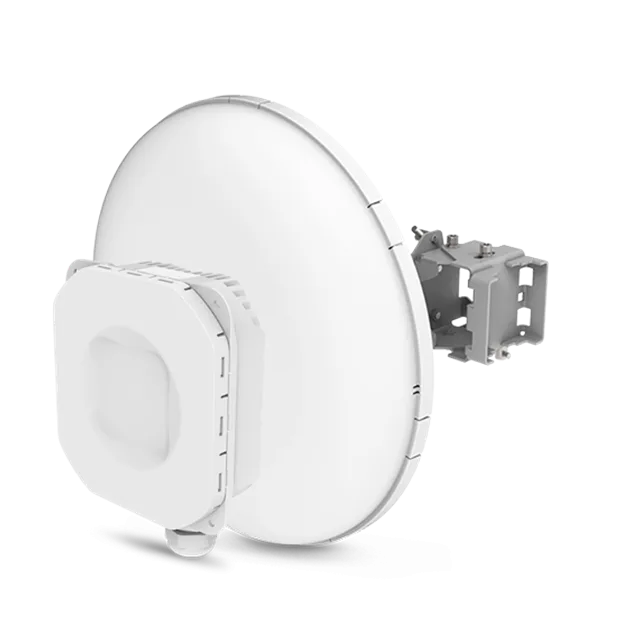

Tachyon TNA-303X

Modular 60 GHz PTP + PTMP Radio

Price on request · project & reseller pricing available

What makes the TNA-303X different is its innovative modular design: the base unit offers 90° x 50° beamforming coverage, and can be paired with an antenna kit (sold separately) to convert it from a wide beam-steering device into a highly directional long-range radio.

With the 300 mm antenna kit the TNA-303X reaches 8 km+ at 2 Gbps+, and scanning kits turn it into a 45° or 90° sector for point-to-multipoint with up to 32 clients.

It supports the full unlicensed 60 GHz band and is fully compatible with the TNA-301, TNA-302 and all other TNA models.

Request a quote Ask on WhatsApp

Genuine product with manufacturer warranty
Delivery across UAE, GCC & Africa
Free 60 GHz link planning & support

TNA-303X key features

Modular antenna kits

Snap on a 100, 150 or 300 mm dish kit (33-42 dBi) or a 45° / 90° scanning kit to match every link distance.

8 km+ range

Long-distance 60 GHz links using the upper channels 5 and 6 and the 300 mm antenna kit.

Horizontal or vertical

Mount for vertical or horizontal polarization to reduce interference between co-located links.

PoE out & failover

1G port with PoE out for cameras and accessories, or configured as an 'anyband' failover port.

TNA-303X specifications

Radio

Default mode: Station (AP / station / PTP in software)
Frequency: 57-71 GHz full band incl. channels 5 & 6
Base unit antenna: 90° x 50° beam steering, 16 dBi
EIRP (base unit): 38 dBm (22 dBm TX power + 16 dBi antenna)
Polarization: Vertical or horizontal
Max clients: 32 per access point

Performance

Throughput: 2 Gbps+
Range: 8 km+ with TNA-AK-300 (channel and rain zone dependent)

Antenna kit support

TNA-AK-100: 6° x 6°, 33 dBi
TNA-AK-150: 4° x 4°, 37 dBi
TNA-AK-300: 2° x 2°, 42 dBi
TNA-AK-S-45: 45° x 5° scanning, 30 dBi
TNA-AK-S-90: 90° x 5° scanning, 30 dBi

Hardware

Interfaces: 1 x 2.5G Ethernet (active PoE in), 1 x 1G Ethernet (PoE out / anyband failover)
Mounting: Pole or wall via backplate
Compatibility: TNA-301, TNA-302, TNA-303L, TNA-305X

TNA-303X datasheet

Full technical specifications, dimensions and certifications for the Tachyon TNA-303X. Plan your link with the Tachyon link calculator.

Download datasheet (PDF)

Buy Tachyon TNA-303X in UAE, Middle East & Africa

Xtream Vision Electronics Trading LLC is the official Tachyon Networks distributor for the UAE, Middle East and Africa. We supply the TNA-303X and the complete Tachyon 60 GHz range to WISPs, telecom operators, system integrators and enterprises in Dubai, Abu Dhabi, Sharjah, Riyadh, Jeddah, Muscat, Doha, Kuwait, Lusaka, Khartoum and beyond. Contact us for the latest TNA-303X price, stock availability and project discounts.

Product details

Brand	Tachyon Networks
Model	TNA-303X
Series	TNA-300 60 GHz Radios
Type	Pure 60 GHz PTP / PTMP
Availability	In stock - UAE, GCC & Africa
Warranty	Manufacturer warranty
Supplied by	Xtream Vision Electronics Trading LLC, Dubai
Datasheet	PDF download

TNA-303X - FAQ

Where can I buy the Tachyon TNA-303X in Dubai or the UAE?

Xtream Vision Electronics Trading LLC is the official Tachyon Networks distributor in the UAE, Middle East and Africa. Contact us for TNA-303X price and availability.

Is the TNA-303X available in Saudi Arabia and Africa?

Yes. We supply the TNA-303X and other Tachyon TNA-300 60 GHz Radios products to the UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Zambia, Sudan and across Africa.

Do you provide support for the TNA-303X?

Yes. Our engineers provide free pre-sales link planning, configuration guidance and after-sales technical support for the TNA-303X.
