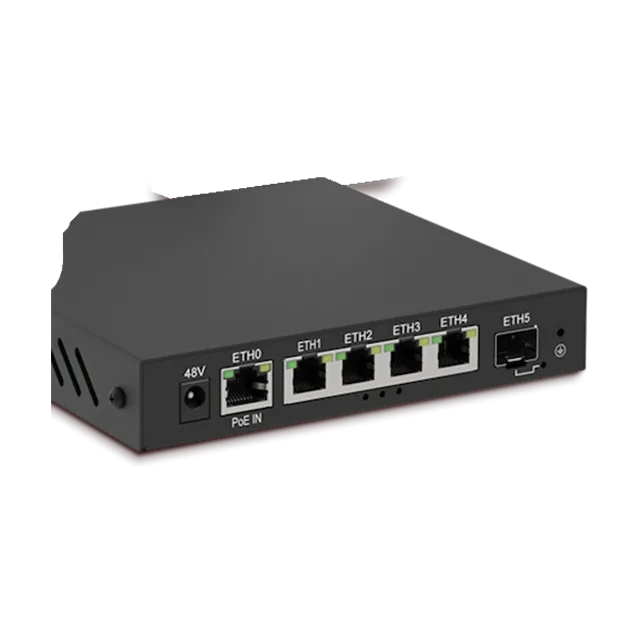

Tachyon TNS-100
6-Port 2.5G PoE Industrial Switch
Price on request · project & reseller pricing available
The TNS-100 is an industrial, VLAN-aware Layer 2 data and power distribution switch designed for Tachyon 60 GHz sites.
Four 2.5 Gbps NBASE-T ports provide software-controlled 4-pair passive PoE-out to power TNA radios at full multi-gigabit speed, while a 10 Gbps SFP+ port uplinks to fibre or your core router.
The switch can itself be powered by PoE-in or the DC barrel jack, mounts on a desk or DIN rail, and is managed from the same web UI, SNMP and RESTful API as Tachyon radios.
- Genuine product with manufacturer warranty
- Delivery across UAE, GCC & Africa
- Free 60 GHz link planning & support
TNS-100 key features
4 x 2.5G PoE out
Power and connect up to four TNA radios at full 2.5G speed with software-controlled passive PoE and remote power-cycle.
10G SFP+ uplink
Aggregate multi-gigabit traffic to fibre or the core router (also runs 1G SFP modules).
Flexible power
Power via PoE-in (24-57V) or DC barrel jack (24-57V, 4A) for larger PoE-out loads.
Same management
Web UI, SNMP v2c/v3 with traps, RESTful API, LLDP/CDP/MNDP and dual boot banks.
TNS-100 specifications
Ports
- 4 x 2.5 Gbps NBASE-T with PoE out (ETH1-ETH4)
- 1 x 2.5 Gbps NBASE-T with PoE in (ETH0)
- 1 x 10 Gbps SFP+ (ETH5)
Power
- PoE in: 24-57V passive, 1A max
- DC barrel jack: 24-57V, 4A max (adapter not included)
- PoE out: passive, voltage follows input, 0.8A max per port, 4-pair, software controlled
- Power consumption: 6W without attachments, up to 160W with PoE out on all ports
Software
- Layer 2, VLANs (management, access, trunking), port isolation
- Management: Web UI, SNMP v2c/v3 + traps, RESTful API
- Services: NTP, LLDP, CDP, MNDP, syslog, ping watchdog, dual boot banks
Physical
- Dimensions: 133 x 152 x 27 mm
- Weight: 710 g
- Mounting: Desktop or DIN rail (DIN rail mount included)
- Operating temperature: -30°C to +50°C
- Certifications: FCC, IC, CE
TNS-100 datasheet
Full technical specifications, dimensions and certifications for the Tachyon TNS-100. Plan your link with the Tachyon link calculator.
Download datasheet (PDF)Buy Tachyon TNS-100 in UAE, Middle East & Africa
Xtream Vision Electronics Trading LLC is the official Tachyon Networks distributor for the UAE, Middle East and Africa. We supply the TNS-100 and the complete Tachyon 60 GHz range to WISPs, telecom operators, system integrators and enterprises in Dubai, Abu Dhabi, Sharjah, Riyadh, Jeddah, Muscat, Doha, Kuwait, Lusaka, Khartoum and beyond. Contact us for the latest TNS-100 price, stock availability and project discounts.
Product details
| Brand | Tachyon Networks |
|---|---|
| Model | TNS-100 |
| Series | Switch & Accessories |
| Type | 2.5G PoE switch, power & mounts |
| Availability | In stock - UAE, GCC & Africa |
| Warranty | Manufacturer warranty |
| Supplied by | Xtream Vision Electronics Trading LLC, Dubai |
| Datasheet | PDF download |
TNS-100 - FAQ
Where can I buy the Tachyon TNS-100 in Dubai or the UAE?
Xtream Vision Electronics Trading LLC is the official Tachyon Networks distributor in the UAE, Middle East and Africa. Contact us for TNS-100 price and availability.
Is the TNS-100 available in Saudi Arabia and Africa?
Yes. We supply the TNS-100 and other Tachyon Switch & Accessories products to the UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Zambia, Sudan and across Africa.
Do you provide support for the TNS-100?
Yes. Our engineers provide free pre-sales link planning, configuration guidance and after-sales technical support for the TNS-100.
